Fiber optic splicing is the process of joining two fiber optic cables together in order to create a continuous path for optical signals. This process is critical in the construction and maintenance of fiber optic networks, as it ensures that signals can be transmitted over long distances without any interruptions or loss of quality.
In this article, we will explore the fundamentals of fiber optic splicing, including the different techniques and procedures used, as well as the equipment and tools required to optimize splicing performance.
The importance of fiber optic splicing cannot be overstated, as it is a key factor in the performance and reliability of communications networks. By joining two fibers together, splicing enables signals to travel further and with less loss, making it possible to transmit data over long distances without the need for costly signal boosters or repeaters.
However, splicing is a complex process that requires specialized knowledge and equipment, and must be performed with great care in order to avoid damaging the delicate fibers.
In the following sections, we will delve into the details of fiber optic splicing, discussing the different techniques and procedures used, the equipment and tools required, and best practices for optimizing splicing performance. Whether you are a seasoned professional or a newcomer to the world of fiber optic communications, this article will provide you with a comprehensive introduction to the art and science of fiber optic splicing.
1.Fiber optic splicing is a critical process in the construction and maintenance of communications networks.
2.Splicing enables signals to travel further and with less loss, making it possible to transmit data over long distances without the need for costly signal boosters or repeaters.
3.Splicing is a complex process that requires specialized knowledge and equipment, and must be performed with great care in order to avoid damaging the delicate fibers.
Fiber optic splicing is the process of joining two or more optical fibers together to form a continuous optical path. This is typically done when the length of the optical fiber needed exceeds the length of a single fiber optic cable. Splicing can also be used to repair a damaged fiber optic cable or to connect different types of fiber optic cables together.
There are two main types of fiber optic splicing: fusion splicing and mechanical splicing. Fusion splicing involves melting two optical fibers together using heat, while mechanical splicing involves physically aligning the two fibers and holding them in place with a splice connector.
There are two main types of fiber optic cables: single-mode fibers and multimode fibers. Single-mode fibers are designed to carry a single mode of light, which allows for higher bandwidth and longer transmission distances. Multimode fibers, on the other hand, are designed to carry multiple modes of light, which results in lower bandwidth and shorter transmission distances.
Fiber optic cables can also be categorized based on their construction. Loose tube cables are designed for outdoor use and can withstand harsh weather conditions, while tight buffer cables are designed for indoor use and have a protective coating around each individual fiber.
In summary, fiber optic splicing is a crucial process for ensuring a continuous optical path in fiber optic networks. Understanding the different types of splicing and fiber optic cables is important for selecting the appropriate method for a given application.
Fusion splicing is a technique used to join two fiber optic cables together by melting the fiber ends together with an electric arc. This technique is performed using a fusion splicer, which is a machine that aligns and fuses the fibers together. The process involves several steps, including fiber preparation, fiber stripping, fiber cleaning, fiber cleaving, and fusion splicing.
The fusion splicing process starts with fiber preparation, which involves stripping the fiber coating and cleaning the fiber ends. After fiber preparation, the fiber is cleaved using a fiber cleaver, which is a device that cuts the fiber cleanly and accurately. The next step is fiber alignment, which is performed using an alignment device. Once the fibers are aligned, an electric arc is used to weld the fibers together, creating a permanent splice.
Mechanical splicing is an alternative splicing technique that does not require a fusion splicer. This technique involves aligning and holding the fiber in place using an index matching fluid and a mechanical splice. The process involves several steps, including fiber preparation, fiber stripping, fiber cleaning, and mechanical splicing.
The mechanical splicing process starts with fiber preparation, which involves stripping the fiber coating and cleaning the fiber ends. After fiber preparation, the fiber is cleaved using a fiber cleaver, which is a device that cuts the fiber cleanly and accurately. The next step is fiber alignment, which is performed using an alignment device. Once the fibers are aligned, a mechanical splice is used to hold the fibers in place, creating a temporary splice.
Preparation and cleave are critical steps in both fusion and mechanical splicing processes. Fiber preparation involves stripping the fiber coating and cleaning the fiber ends to ensure that the fiber is free from any contaminants that can affect the splicing process. Fiber cleaving is the process of cutting the fiber cleanly and accurately using a fiber cleaver. Proper fiber preparation and cleaving are essential to ensure that the fibers are aligned accurately and the splice is successful.
In conclusion, both fusion and mechanical splicing techniques have their advantages and disadvantages. Fusion splicing is a permanent splice that has lower insertion loss and back-reflection, while mechanical splicing is a temporary splice that is less expensive and requires less specialized equipment. Proper preparation and cleaving are critical to both techniques to ensure a successful splice.
When it comes to splicing fiber optic cables, having the right equipment and tools is essential for creating a reliable joint. Here are some of the key tools and equipment needed for splicing fiber optic cables:

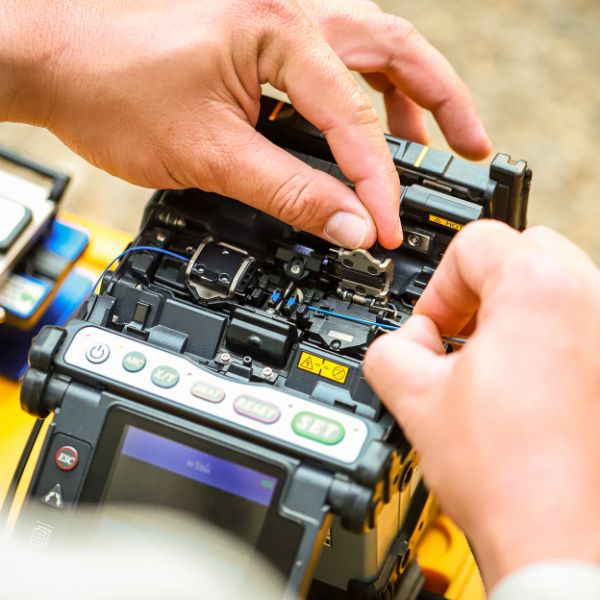

A fusion splicer is a self-contained assembly that is used to splice two fibers together. It uses an electric arc to melt the ends of the fibers and then fuses them together. There are many different models of fusion splicers available, each with its own set of features and capabilities. When choosing a fusion splicer, it's important to consider factors such as speed, accuracy, and ease of use.
Maintaining the cleanliness of the fiber is critical to achieving a reliable splice. The following tools are commonly used to clean and maintain the fiber:
1.Fiber Stripper: This tool is used to remove the cladding and coating of optical fibers and expose the bare fiber. It's important to use a high-quality fiber stripper to ensure that the fiber is not damaged during the stripping process.
2.Isopropyl Alcohol: 99.9% isopropyl alcohol (IPA) is used to clean the fiber before splicing. It's important to use a high-quality IPA to ensure that the fiber is free of contaminants.
3.IPA Wipes: These wipes are used to apply the IPA to the fiber. They are made of lint-free material to ensure that no fibers are left behind.
In addition to having the right tools, it's important to practice good splicing techniques to achieve a reliable joint. This includes ensuring that the fiber is properly prepared, cleaning the fiber before splicing, and using the right amount of heat during the fusion process.
Overall, having the right equipment and tools, and practicing good splicing techniques are essential for creating a reliable joint when splicing fiber optic cables.
Splicing fiber optic cables is a delicate process that requires attention to detail to ensure optimal performance. There are several factors to consider when splicing fiber optic cables to minimize insertion loss and back reflection and to achieve lower light loss, such as the quality of the fiber, the cleanliness of the splice, and the techniques used to make the splice.
Quality assurance is critical to ensuring reliable splicing performance. Before splicing, it is essential to inspect the fibers for any damage or contamination. Protective coatings and sleeves should be removed carefully, and the fibers should be cleaned thoroughly using approved cleaning solutions and techniques.
To ensure optimal performance, splicing should be performed in a controlled environment with stable environmental conditions, such as temperature and humidity. The splice tray and closure should be designed to protect the splices from environmental factors that could affect their performance.
Even with proper quality assurance measures, issues may arise during or after splicing. Troubleshooting and repairs are necessary to maintain the reliability of the splices.
If an issue arises, the first step is to identify the problem. Common issues include high insertion loss, high back reflection, and light loss. Once the issue is identified, the splice should be inspected to determine the cause of the problem.
If the issue is related to the splice itself, the splice protector should be removed, and the splice should be inspected for damage or contamination. If the splice is damaged or contaminated, it should be repaired or replaced.
In conclusion, optimizing splicing performance requires attention to detail and quality assurance measures. By following proper techniques and protocols, splices can be made with minimal insertion loss and back reflection and lower light loss, ensuring reliability in various environmental conditions. Troubleshooting and repairs are necessary to maintain optimal performance and should be performed promptly to avoid further damage.
