Product Description

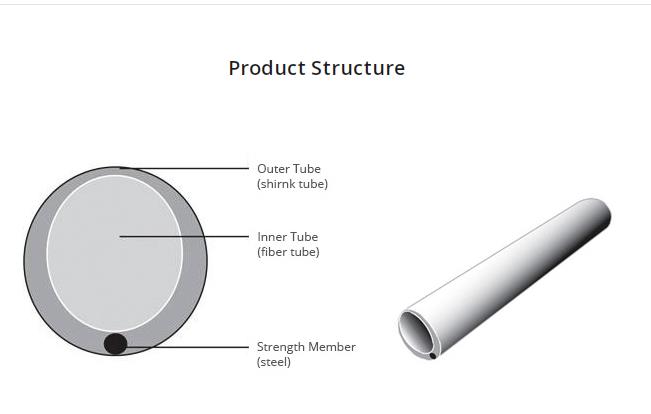

This products is made up of cross linked polyolefin heat-shrinkable tubes,hote melt tubes and Stainless steel needle. It is specifically designed for the protection of fiber optical closure.
Specification
| Length of Tube | 60mm | Outer Tube Diameter | 3.5mm |
| Inner Tube Diameter | Inner 1.3mm Outer 2.2mm | Steel Needle Diameter | 1.2mm |
| After Recover Diameter | 2.6mm | Working Temperature | -55 to 100°C (-67 to 212°F) |
| Tensile Strength | 18MPa | Dielectric Constant | 2.5 |
| Elongation at Break | 700% | Longitudinal Change | ±5% |
| Density | 0.94g/m³ | Eccentricity | 105 |
| Dielectric Strength | 25kV/mm | Volume resistance | 1015Ω |
| Minimum Shrink Temperature | 120°C (248°F) | Minimum Fully Recovery Temperature | 100°C (212°F) |
Many Certificates
CE Cetificate
Certificate of patent for utility model
National cable inspection report
ROHS report
ISO 9001
(31115-31116) M.2021.206.C64908 CE Fiber optic splitter.pdf
(31113-31114) M.2021.206.C64907 CE Fiber optic patch cord.pdf
(31111-31112) M.2021.206.C64906 CE Fiber optical cable.pdf
The utility model related to a bundle fiber optic cables with strong weather resistance.png
The utility model relates to a waterproof and compression resistant armored optical cable.png
The utility model relates to an indoor optical cable with good fireproof performance.png
The utility model relates to a combined branch optical cable.png
The utility model relates to a pigtail cable with good waterproofing effect.png
The utility model relates to an enhanced simplex optical cable.png
The utility model relates to a branch optical cable with strong pressure resistance.png
The utility model relates to a indoor optical cable with strong pressure resistance.png
The utility model related to a simplex cable for corrosion resistance.png
National cable inspection report.pdf
HAPER2103050102 Tight buffer fiber ROHS report.pdf
HAPER2103050101 Fiber optic patch cord ROHS report.pdf
HAPER2103050103 Fiber optic cable ROHS report.pdf
HAPER2103050104 fiber optic splitter ROHS report.pdf
Application
Used to open the FTTH fiber terminal end.
In the box, cabinet, such as wiring into the box.
Off the back of the accidents such as fiber, maintenance.
LAN, wan, data and video transmission.
The construction of the fiber end user access and maintenance.
Optical fiber access of mobile base station.
