Dierite
SC/UPC to SC/UPC
G.652D
2*3 OR 2*5
Simplex
LSZH
UPC TO UPC
≥55dB
≤0.2dB
| Quantity: | |
|---|---|
Product Description

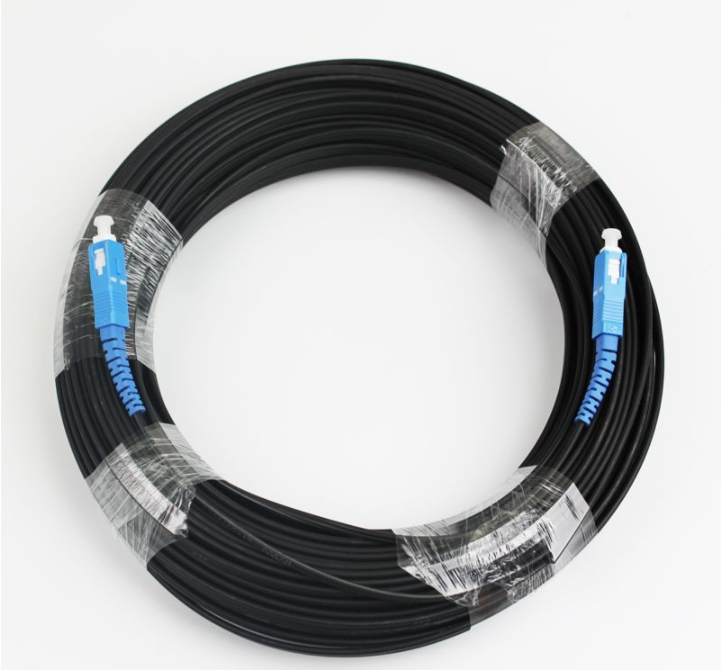

Dierite offer for 1m,3m,5m,10m,15m,20m... single mode SC To SC Drop Cable Patch Cord, Europ quality and Asia prices, wellcome to inquiry anytime for SC To SC Drop Cable Patch Cord , LSZH / PVC Jacket Fiber Optic Jumper Cables Factory manufactured optic fiber patch cord, used in connecting receiver and terminal box. with many interfaces optional.
Our products are covering most of Europe market. We are hoping to become your long-term business partner in China.
CCTC Ceramic Ferrule

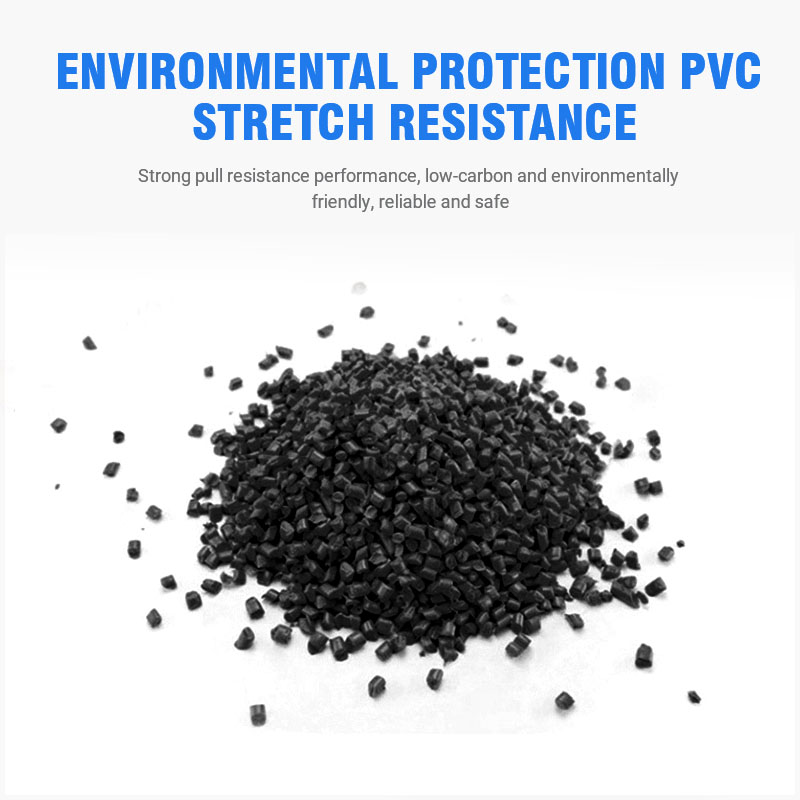

High Quality PVC/LSZH Material
Specification
Characteristic | Item | Test condition | Single mode fiber | Multimode Fiber | ||

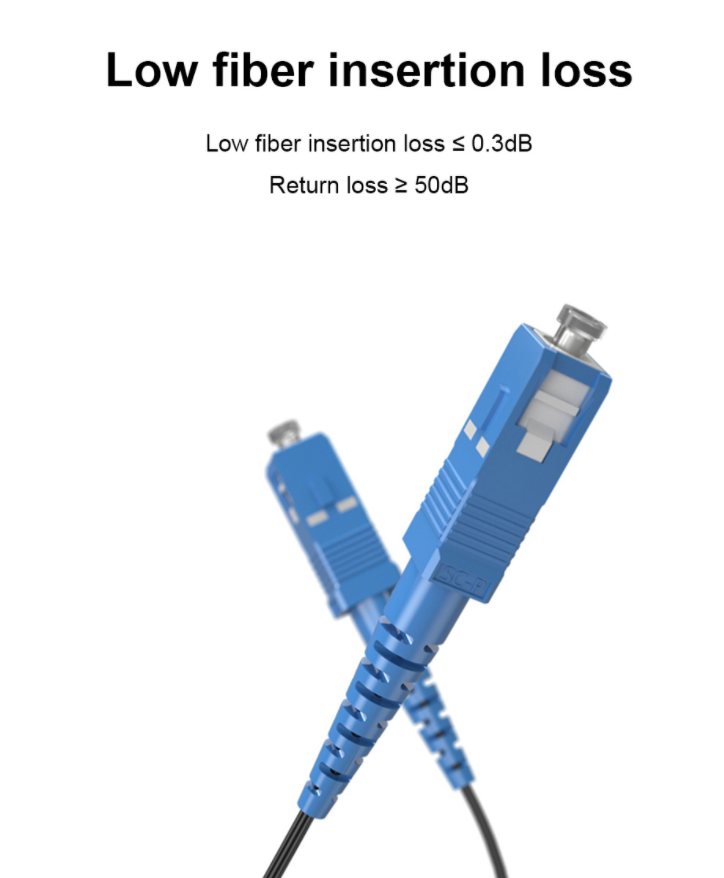

Optical property | Insertion Loss (dB) | UPC | 1.31μm，LED | ≤0.2dB | ≤0.4dB | |
APC | ≤0.3dB | ≤0.4dB | ||||
Return Loss (dB) | UPC | 1.31μm，LD | ≥55dB | ≥25dB | ||
APC | ≥65dB | - | ||||
Mechanical test | Impulse test | 1.8 height，8 times | ＜0.1dB | ＜0.1dB | ||
Vibration test | 10-60Hz，1mm full amplitude | ＜0.1dB | ＜0.1dB | |||
Plug service life | Above 1000times | ＜0.1dB | ＜0.1dB | |||
Tensile strength | ≥50N | ＜0.1dB | ＜0.1dB | |||
Environmental property | High temperature test | +85℃，96hs | ＜0.2dB | ＜0.2dB | ||
Cryogenic test | -40℃，96hs | ＜0.2dB | ＜0.2dB | |||
Damp heat test | +40℃,90-95%RH,96hs | ＜0.2dB | ＜0.2dB | |||
Strictly Tested before delivery
IL/RL test
3D tested
End surface test
CE Cetificate
Certificate of patent for utility model
National cable inspection report
ROHS report
ISO 9001
(31115-31116) M.2021.206.C64908 CE Fiber optic splitter.pdf
(31113-31114) M.2021.206.C64907 CE Fiber optic patch cord.pdf
(31111-31112) M.2021.206.C64906 CE Fiber optical cable.pdf
The utility model related to a bundle fiber optic cables with strong weather resistance.png
The utility model relates to a waterproof and compression resistant armored optical cable.png
The utility model relates to an indoor optical cable with good fireproof performance.png
The utility model relates to a combined branch optical cable.png
The utility model relates to a pigtail cable with good waterproofing effect.png
The utility model relates to an enhanced simplex optical cable.png
The utility model relates to a branch optical cable with strong pressure resistance.png
The utility model relates to a indoor optical cable with strong pressure resistance.png
The utility model related to a simplex cable for corrosion resistance.png
National cable inspection report.pdf
HAPER2103050102 Tight buffer fiber ROHS report.pdf
HAPER2103050101 Fiber optic patch cord ROHS report.pdf
HAPER2103050103 Fiber optic cable ROHS report.pdf
HAPER2103050104 fiber optic splitter ROHS report.pdf
Application
Used in optical fiber communication roomoptical fiber to the homeoptical fiber
data transmissionoptical fiber CATVlocal area network
(local area network)optical fiber sensoroptical testing equipmentetc.
Optic-fiber Communication Systems
Optic-fiber Data Communications
Optic-fiber Access Networks
Optic-fiber CATV
Test Equipment
Optic-fiber Sensors
