Dierite

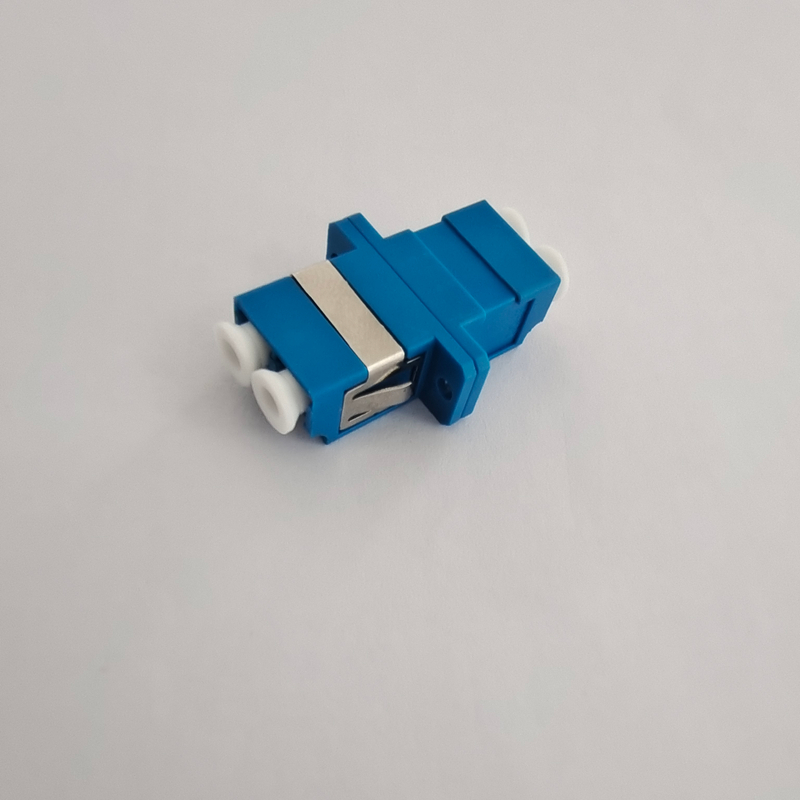

LC TO LC
SM
Duplex
UPC to UPC
| Quantity: | |
|---|---|
Product Description
A fiber optic adapter, sometimes also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. Dierite supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapters.
Protective Design Dust Cap
Prevent the adapter from dust and keep it clean
Stainless Steel Clip
Allow for easy snap-in installation without tools

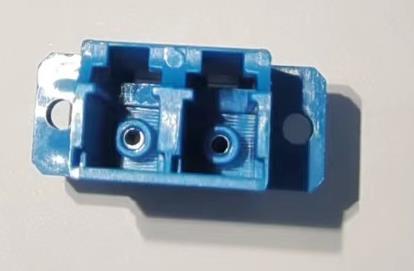

Zirconia Ceramic Sleeve
Low insertion loss with high-precision alignment
Specification
| Product Type | SC FC ST LC Adapter | |
| Modus | Single mode | Multi mode |
| Insertion Verlies | <0.2dB | <0.3dB |
| Return Loss | >45dB | ------- |
| Mating Durability (500times) | Additional Loss≤0.1dB Return Loss Variability<5dB | |
| Temperature Stability(-40°C~80°C) | Additional Loss≤0.2dB Return Loss Variability<5dB | |
| Bedrijfstemperatuur | -40 °C ~ + 75 °C | |
| Opslag Temperatuur | -40 °C ~ + 80 °C | |
Before Delivery And Certificates
IL/RL test
3D tested
End surface test
CE Cetificate
Certificate of patent for utility model
National cable inspection report
ROHS report
ISO 9001
(31115-31116) M.2021.206.C64908 CE Fiber optic splitter.pdf
(31113-31114) M.2021.206.C64907 CE Fiber optic patch cord.pdf
(31111-31112) M.2021.206.C64906 CE Fiber optical cable.pdf
The utility model related to a bundle fiber optic cables with strong weather resistance.png
The utility model relates to a waterproof and compression resistant armored optical cable.png
The utility model relates to an indoor optical cable with good fireproof performance.png
The utility model relates to a combined branch optical cable.png
The utility model relates to a pigtail cable with good waterproofing effect.png
The utility model relates to an enhanced simplex optical cable.png
The utility model relates to a branch optical cable with strong pressure resistance.png
The utility model relates to a indoor optical cable with strong pressure resistance.png
The utility model related to a simplex cable for corrosion resistance.png
National cable inspection report.pdf
HAPER2103050102 Tight buffer fiber ROHS report.pdf
HAPER2103050101 Fiber optic patch cord ROHS report.pdf
HAPER2103050103 Fiber optic cable ROHS report.pdf
HAPER2103050104 fiber optic splitter ROHS report.pdf
Application
Used in optical fiber communication roomoptical fiber to the homeoptical fiber
data transmissionoptical fiber CATVlocal area network
(local area network)optical fiber sensoroptical testing equipmentetc.
Optic-fiber Communication Systems
Optic-fiber Data Communications
Optic-fiber Access Networks
Optic-fiber CATV
Test Equipment
Optic-fiber Sensors
