GJYXFCH 2 Core FTTH Drop Cable Self-Support G.657A2 FRP LSZH

Wholesale customized GJYXFCH 2 Core FTTH Drop Cable Self-Support G.657A2 FRP LSZH by Dierite. We are well known as one of leading GJYXFCH 2 Core FTTH Drop Cable Self-Support G.657A2 FRP LSZH manufacturers and suppliers in China. Buy GJYXFCH 2 Core FTTH Drop Cable Self-Support G.657A2 FRP LSZH directly with low price and high quality.
  • Dierite

  • G.652D,G.657A1,G.657A2,OM1,OM2,OM3,OM4,OM5

  • 2.0*5.0

  • 2 core

  • LSZH

Availability:
Quantity:

Product Description

GJYXFCH 2 Core FTTH Drop Cable Self-Support G.657A2 FRP LSZH Description

Dierite offers 2 Core FTTH Drop Cable Self-Support GJYXFCH SM 9/125 OS2 G657A2 with 2 FRP in Parallel As Strength member A steel wire or KFRP As Strength member LSZH The drop FTTH cables are with flame retardant jacket and with supporting wire, there are strengthen members inside the cables for supporting the whole cables. The optical fiber cable is with special structure so it is easy to pull the fibers out from the cables.


2 Core FTTH Drop Cable Self-Support GJYXFCH SM 9/125 OS2 G657A2 with 2 FRP in Parallel As Strength member A steel wire or KFRP As Strength member LSZH

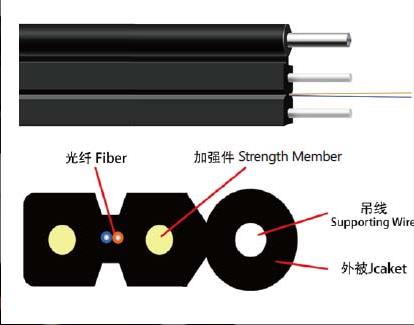

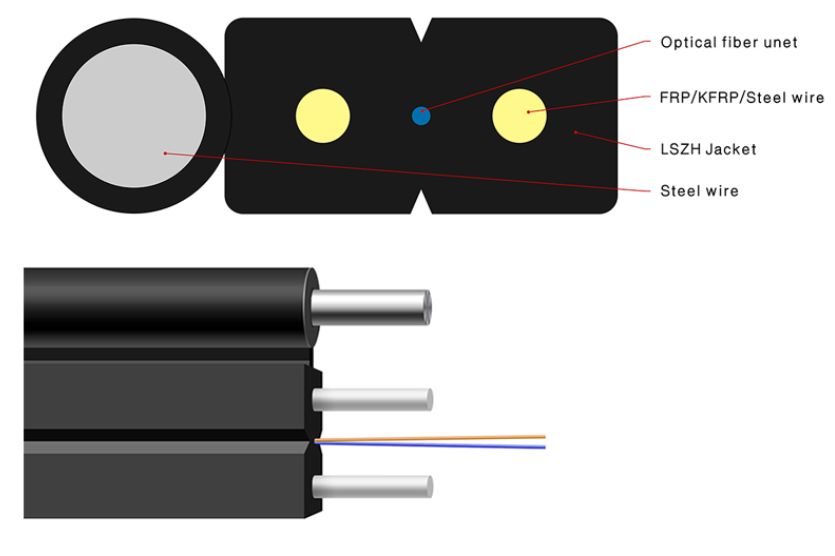

2 Core FTTH Drop Cable Self-Support GJYXFCH SM 9/125 OS2 G657A2 with 2 FRP in Parallel As Strength member A steel wire or KFRP As Strength member LSZH. FRP With Two parallel Fiber Reinforce Plastic (FRP) strength members with LSZH sheath and 1 or 2 or 4 or… Optical fiber unit is positioned in the center A steel wire or KFRP As Strength member. FTTH out door cable because of Fiber Type Singlemode G.657A has a much greater bandwidth to carry data and less susceptible to interference than common indoor fiber cables because flexibility of Singlemode G.657A1 bendable characteristics. With small diameter, water-resistant, the non-metallic strength member FRP (Fiber-reinforced plastic) can provide lightning protection and anti-electromagnetic interference. 2 Core FTTH Drop Cable Self-Support GJYXFCH SM 9/125 OS2 G657A2 with 2 FRP in Parallel As Strength member A steel wire or KFRP As Strength member LSZH is ideal for outdoor cabling, end users directly cabling, and access network.  The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then, the cable is completed with a black or white LSZH sheath.

The typical GJYXFCH/GJYXCH self-supporting bow-type drop optical cable consists of GJXFH/GJXH cable and an additional strength member (steel wire or stranded steel wire).


GJYXFCH 2 Core FTTH Drop Cable Self-Support G.657A2 FRP LSZH

GJYXFCH 2 Core FTTH Drop Cable Self-Support G.657A2 FRP LSZH

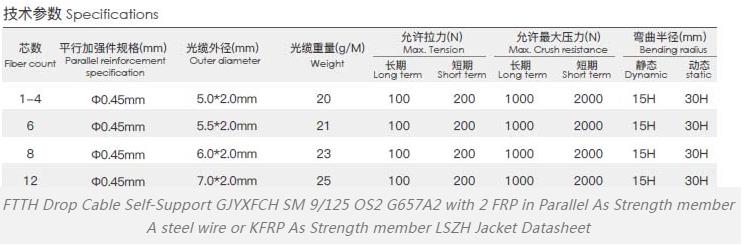

Specification

GJYXFCH 2 Core FTTH Drop Cable Self-Support G.657A2 FRP LSZH

Specification

Optical Characteristics:
Fiber Sort Multimode G.651 A1a:50/125 Graded-index fiber
A1b:62.5/125
Singlemode G.652(A、B、C) B1.1:Conventional fiber
G.652D B2: Zero  dispersion shifted
G.655 B1.2 :Cut- off wavelength shifted
G.657(A1、A2 、B3) B4: Main technical data for positive
dispersion shifted single-mode fiber
微信截图_20220805175116


2000m/ Wooden Drum
1 Drum/ Carton
Wooden Drum Size: 40cm
(Diameter) * 32cm (Height)
Carton Size: 42*42*34cm


Application

GJYXFCH 2 Core FTTH Drop Cable Self-Support G.657A2 FRP LSZH

 STRONG COMPATIBILITY AND WIDE APPLICATION

◆ Used as access building cable

◆ Used as interconnect lines of equipments, and used in optical connections in optical communication rooms and optical distribution frames

◆ Indoor cabling
◆ Suitable for patch cord and pigtails, indoor distribution
◆ Distribution system cable


  • Fiber-Optic-Patch-Cable-Application
