Dierite
G.652D,G.657A
SC APC
Availability: | |
---|---|
Quantity: | |
Product Description

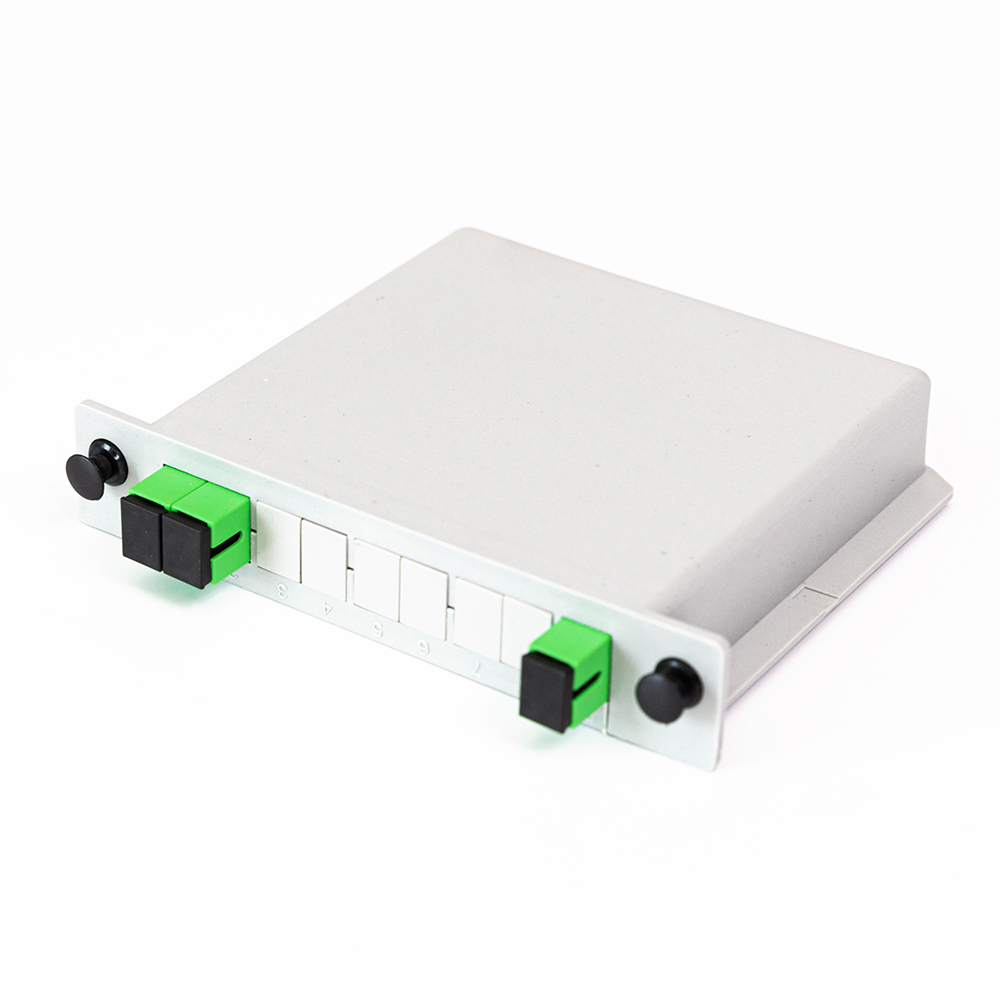

Dierite offer single mode 1X2 LGX Cassette Type Fiber Optic Splitter, Europ quality and Asia prices, wellcome to inquiry anytime for 1X2 LGX Cassette Type Fiber Optic Splitter , LSZH / PVC Jacket Fiber Optic Jumper Cables Factory manufactured 1X2 LGX Cassette Type Fiber Optic Splitter, used in connecting receiver and terminal box. with many interfaces optional.
Our products are covering most of Europe market. We are hoping to become your long-term business partner in China.
Characteristics:
Good uniformity and low insertion loss
Low Polarization Dependent Loss
Excellent Environmental Stability
Excellent Mechanical
Stability Telecordia GR-1221 and GR-1209
Components through TLC-Certified, Conform to YD1117-2001
jsdierite.com provides a various of 1xN and 2xN Blockless PLC Splitter. For more information about Fiber Blockless PLC Splitter, please contact us.
jsdierite.com is one of the largest and best 1X2 LGX Cassette Type Fiber Optic Splitter manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized 1X2 LGX Cassette Type Fiber Optic Splitter in stock with our factory. Also, free sample is also available if necessary.
Specification
Type | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |
Operating wavelength(nm) | 1260-1650 | ||||||
Insertion loss (dB) | Typical | 3.6 | 7.2 | 10.5 | 13.5 | 17 | 19.5 |
Maximum | 4 | 7.5 | 11 | 14 | 17.2 | 21 | |
Uniformity (dB) | Typical | 0.4 | 0.5 | 0.6 | 1 | 1 | 2 |
Maximum | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | |
Polarization Dependent Loss (dB) | Typical | 0.1 | 0.1 | 0.15 | 0.2 | 0.2 | 0.2 |
Maximum | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | 0.3 | |
Wavelength dependent loss (dB) | Typical | 0.1 | 0.1 | 0.15 | 0.3 | 0.3 | 0.3 |
Maximum | 0.2 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | |
Return loss (dB) | Minimum | 55/50 | |||||
Directivity (dB) | Minimum | 55 | |||||
Operating temperature (℃) | -20 to 85 | ||||||
Storage temperature (℃) | -40 to 85 | ||||||
Optical fiber type | SMF-28 Or customer required | ||||||
Optical fiber length (m) | 1.2 or customize |
Strictly Tested before delivery
IL/RL test
3D tested
End surface test
CE Cetificate
Certificate of patent for utility model
National cable inspection report
ROHS report
ISO 9001
(31115-31116) M.2021.206.C64908 CE Fiber optic splitter.pdf
(31113-31114) M.2021.206.C64907 CE Fiber optic patch cord.pdf
(31111-31112) M.2021.206.C64906 CE Fiber optical cable.pdf
The utility model related to a bundle fiber optic cables with strong weather resistance.png
The utility model relates to a waterproof and compression resistant armored optical cable.png
The utility model relates to an indoor optical cable with good fireproof performance.png
The utility model relates to a combined branch optical cable.png
The utility model relates to a pigtail cable with good waterproofing effect.png
The utility model relates to an enhanced simplex optical cable.png
The utility model relates to a branch optical cable with strong pressure resistance.png
The utility model relates to a indoor optical cable with strong pressure resistance.png
The utility model related to a simplex cable for corrosion resistance.png
National cable inspection report.pdf
HAPER2103050102 Tight buffer fiber ROHS report.pdf
HAPER2103050101 Fiber optic patch cord ROHS report.pdf
HAPER2103050103 Fiber optic cable ROHS report.pdf
HAPER2103050104 fiber optic splitter ROHS report.pdf
Application
◆ Used as access building cable
◆ Used as interconnect lines of equipments, and used in optical connections in optical communication rooms and optical distribution frames
