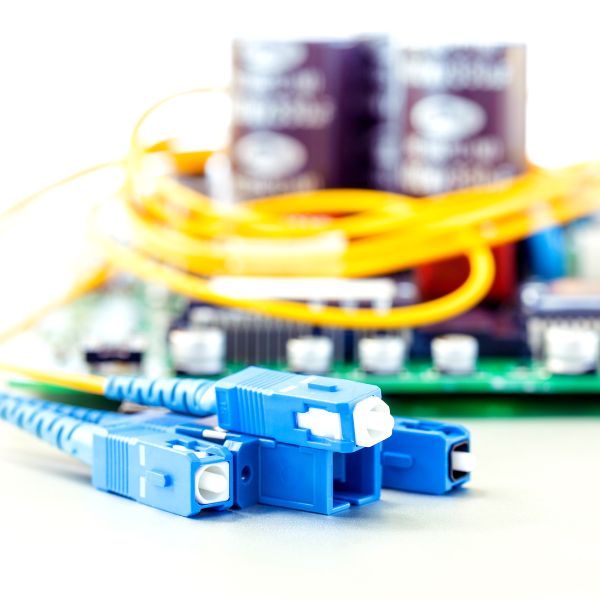

Fiber-optic cables have become the backbone of modern communication systems. They transmit data as light signals through thin glass or plastic fibers. One of the most significant advantages of fiber-optic cables is their ability to transmit data over long distances without significant signal loss. This article will explore the factors that affect the distance a signal can travel on a fiber-optic cable.
Fundamentals of Fiber Optic Transmission Fiber optic cables transmit data over long distances using light signals. The light signals are generated by a laser or light-emitting diode (LED) and transmitted through the fiber. The light signals are then received by a photodetector at the other end of the cable, which converts them back into electrical signals. The transmission of data over fiber optic cables is faster and more efficient than traditional copper wires.
Factors Affecting Signal Distance Several factors affect the distance a signal can travel on a fiber-optic cable. One of the most important factors is attenuation, which is the loss of signal strength as light travels through the fiber. Attenuation increases as the distance traveled by the light signal increases.
Other factors that affect signal distance include dispersion, which is the spreading out of the light signal over time, and data rate, which is the amount of data transmitted per unit of time.
1. Fiber-optic cables transmit data as light signals through thin glass or plastic fibers.
2. The distance a signal can travel on a fiber-optic cable is affected by attenuation, dispersion, and data rate.
3. Technological advancements have increased the maximum distance a signal can travel on a fiber-optic cable.
Optical fiber is a thin, flexible, transparent strand or filament made of glass or plastic used for transmitting light signals over long distances with minimal loss of signal quality. It consists of a core, which is the central part of the fiber where the light travels through, and a cladding, which is the outer layer that surrounds the core and reflects the light back into the core.
The core and cladding are made of different materials with different refractive indices, which allows for total internal reflection to occur.
The core of the optical fiber is typically made of glass or plastic and has a diameter of about 9 microns for single-mode fibers and 50-62.5 microns for multi-mode fibers. The cladding is also made of glass or plastic and has a slightly lower refractive index than the core to ensure that the light stays within the core.
When a light pulse enters the core of the optical fiber, it is guided along the fiber by total internal reflection. Total internal reflection occurs when the angle of incidence of the light pulse is greater than the critical angle, which is determined by the refractive indices of the core and cladding. The light pulse reflects off the interface between the core and cladding, allowing it to travel down the fiber without significant loss of signal quality.
The distance that a signal can travel on a fiber-optic cable depends on a variety of factors, including the quality of the cable, the wavelength of the light, and the power of the light source. Generally, single-mode fibers can transmit signals over longer distances than multi-mode fibers because they have a smaller core diameter and lower signal attenuation.
In conclusion, optical fiber is a highly efficient and reliable means of transmitting information over long distances. Its construction and total internal reflection allow for minimal loss of signal quality, making it an ideal choice for telecommunications, networking, and data transmission applications.
Attenuation is the gradual loss of signal strength as it travels through a fiber-optic cable. This is caused by several factors, including absorption, scattering, and reflection. The attenuation of a fiber-optic cable is measured in decibels per kilometer (dB/km). The higher the attenuation, the shorter the distance that a signal can travel.
Signal loss is another factor that affects the distance a signal can travel on a fiber-optic cable. Signal loss can be caused by attenuation, but it can also be caused by other factors such as connectors, splices, and bends in the cable. The loss of signal strength is measured in decibels (dB).
Dispersion is the spreading of the light pulse as it travels through the fiber-optic cable. There are two main types of dispersion: modal dispersion and chromatic dispersion.
Modal dispersion occurs in multimode fiber-optic cables, where different modes of light travel at different speeds. Chromatic dispersion occurs in both single-mode and multimode fiber-optic cables, where different wavelengths of light travel at different speeds.
Bandwidth limitations are another factor that affects the distance a signal can travel on a fiber-optic cable. The bandwidth of a fiber-optic cable is the range of frequencies that it can support. As the bandwidth increases, the distance that a signal can travel decreases proportionally.
The type of fiber-optic cable used also affects the distance a signal can travel. Single-mode fiber-optic cables are designed for long-distance transmission and have a smaller core diameter than multimode fiber-optic cables.
Multimode fiber-optic cables are designed for shorter-distance transmission and have a larger core diameter than single-mode fiber-optic cables. The properties of the fiber-optic cable, such as its refractive index and numerical aperture, also affect the distance a signal can travel.
In conclusion, the distance a signal can travel on a fiber-optic cable is affected by several factors, including attenuation, signal loss, dispersion, bandwidth limitations, and the type of fiber-optic cable used. By understanding these factors, it is possible to design and deploy fiber-optic networks that can transmit signals over long distances with minimal signal loss.

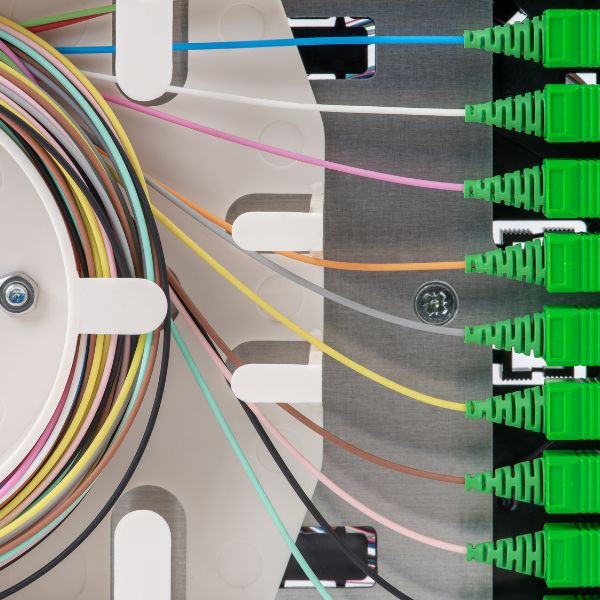

The distance that a signal can travel on a fiber-optic cable is determined by a variety of factors, including the quality of the transmitter and laser used. Transmitters generate the signals that are sent down the fiber optic cable, while lasers are used to amplify the signal and ensure that it can travel over long distances.
The spectral width of the laser is an important factor to consider when determining the maximum distance a signal can travel on a fiber-optic cable. Lasers with a narrower spectral width can transmit signals over longer distances without the need for amplification.
Amplification and repeaters are also important factors to consider when determining the maximum distance a signal can travel on a fiber-optic cable. Amplifiers are used to boost the signal strength, while repeaters are used to regenerate the signal and ensure that it can travel over long distances without degradation.
For most applications, the maximum distance of any type of fiber-optic cable is around 62.14 miles (100 kilometers). However, some applications require longer distances. For these applications, fiber-optic cables with special dispersion characteristics or amplification may be required.
Interference and electromagnetic interference (EMI) can also limit the distance that a signal can travel on a fiber-optic cable. EMI can be caused by a variety of factors, including other electronic devices, power lines, and even lightning strikes.
To minimize the effects of interference and EMI, fiber-optic cables are typically shielded and grounded. Additionally, fiber-optic cables are often buried underground or run through protective conduits to further reduce the risk of interference and EMI.
In conclusion, the maximum distance a signal can travel on a fiber-optic cable is determined by a variety of factors, including the quality of the transmitter and laser used, the use of amplification and repeaters, and the risk of interference and EMI. By carefully considering these factors, it is possible to transmit signals over long distances without degradation.

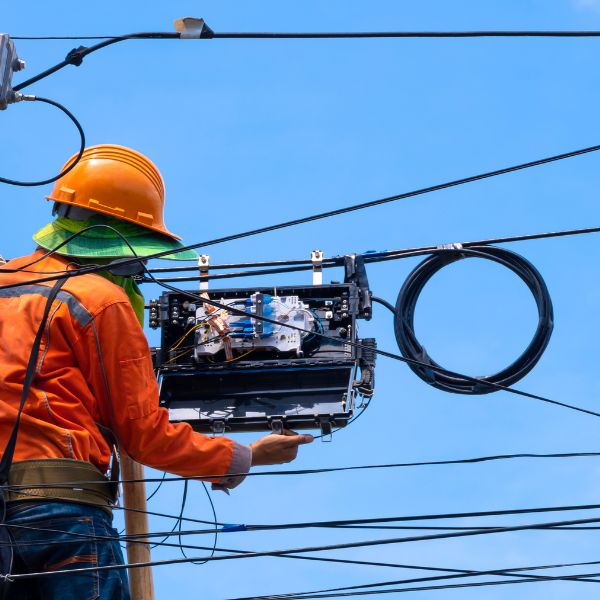

Fiber-optic cables are widely used in the telecommunications industry due to their ability to transmit data over long distances without significant loss of signal strength.
Telecommunications companies use fiber-optic cables to provide high-speed internet, cable television, and telephone services to consumers. Data centers also use fiber-optic cables to connect servers and other networking equipment over long distances.
Fiber-optic cables are also used in local area networks (LANs) to connect devices and provide high-speed connectivity. The use of fiber-optic cables in LANs has become more prevalent in recent years due to the increasing demand for high-speed data transmission. Fiber-optic cables are used to connect switches, routers, and other networking equipment within a building or campus.
The Telecommunications Industry Association (TIA) has developed standards for fiber-optic cables to ensure interoperability and compatibility between different manufacturers' products. These standards specify the maximum distance that a signal can travel on a fiber-optic cable, as well as the type of connector that should be used.
For example, the TIA 1000BASE-SX standard specifies a maximum distance of 550 meters over multimode fiber using a duplex LC connector. The 10GBASE-SR standard specifies a maximum distance of 300 meters over multimode fiber using a duplex LC connector. The 40GBASE-SR4 standard specifies a maximum distance of 100 meters over multimode fiber using an MPO-style connector.
Compliance with industry standards is important to ensure that fiber-optic cables work properly and provide reliable connectivity.
